Magnus - MLX - B plus / MLX - Tr plus

MLX- B plus / MLX-Tr plus


Semi-Plan achromatic optics with anti-fungal treatment. Uniformly centered, Interchangeable & Parfocal, Anti-Fungus treated

Aluminium die cast body with all critical movements based on ball bearing and wire guides, thereby ensuring smooth and precise manipulation

Binocular 45 degree inclined, rotatable through 360 degrees

Trinocular 45 degree inclined, rotatable through 360 degrees

WF 10x (FN 18mm) paired eyepiece. The unique optical design of the compensating eyepiece provides relief from eye fatigue and renders color-compensated wide-field images of utmost clarity

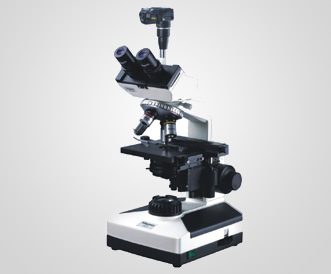

magnus-microscope
  • Acromat Objectives
  • N.A.
  • W.D.
  • 4X
  • 0.10
  • 29.0mm
  • 10X
  • 0.25
  • 6.3mm
  • 40X (spring loaded)
  • 0.65
  • 0.53mm
  • 100X (oil, spring loaded)
  • 1.25
  • 0.20mm

Quadruple revolving nosepiece based on precision ball-bearing mechanism with positive stop click.

Co-axial low drive mechanical stage (125mm x 145mm) (±5mm) with traverse area of 50mm x 76mm (±5mm)

Abbe condenser with aperture iris diaphragm (N.A 1.25) focusable with rack & pinion through 20mm and a continuously variable iris diaphragm with a removable blue filter for daylight observation. Rack & pinion mounted condenser holder.

Co-axial coarse & fine controls with a focus adjustment and fine adjustment knobs. Coarse Focus range 25mm.

a) Built-in-illumination base with pre-centered 6V 20W halogen light source coupled with an efficient collector lens system. Universal Power supply 100V ~240V AC 50Hz (SMPS). Supplied with one spare bulb & spare fuse. Easily replaceable lamp from front.

b) LED light source High brightness, long life (30000 hrs).

c) LED light source (with battery backup) High brightness, long life (30000 hrs). Battery backup in-built NiMH Rechargeable batteries provide 6-8hours back-up on full charge

MLX-B plus Features

Parfocal and Centered Objectives: Minimizes the use of fine focusing and stage control knobs during objective change over

Optics with multi-layer coating: maximize transmission of light for crisp and bright images

Anti-fungus treated optics: ensures image excellence for long periods

Light collector-lens systems: for optimal brightness

Micro sensitive mechanical movements: enable easy manipulation of specimen

Available with halogen or LED light source

Optional: in-built battery pack for cordless operation

MLX-Tr plus Features

Parfocal and Centered Objectives: Minimizes the use of fine focusing and stage control knobs during objective change over

Optics with multi-layer coating: maximize transmission of light for crisp and bright images

Anti-fungus treated optics: ensures image excellence for long periods

Light collector-lens systems: for optimal brightness

Micro sensitive mechanical movements: enable easy manipulation of specimen

Available with halogen or LED light source

Magnus - mlx - b plus / mlx-tr plus

User manual

Power Cord

Immersion Oil

Dust Cover

Bulb 6V 20W
